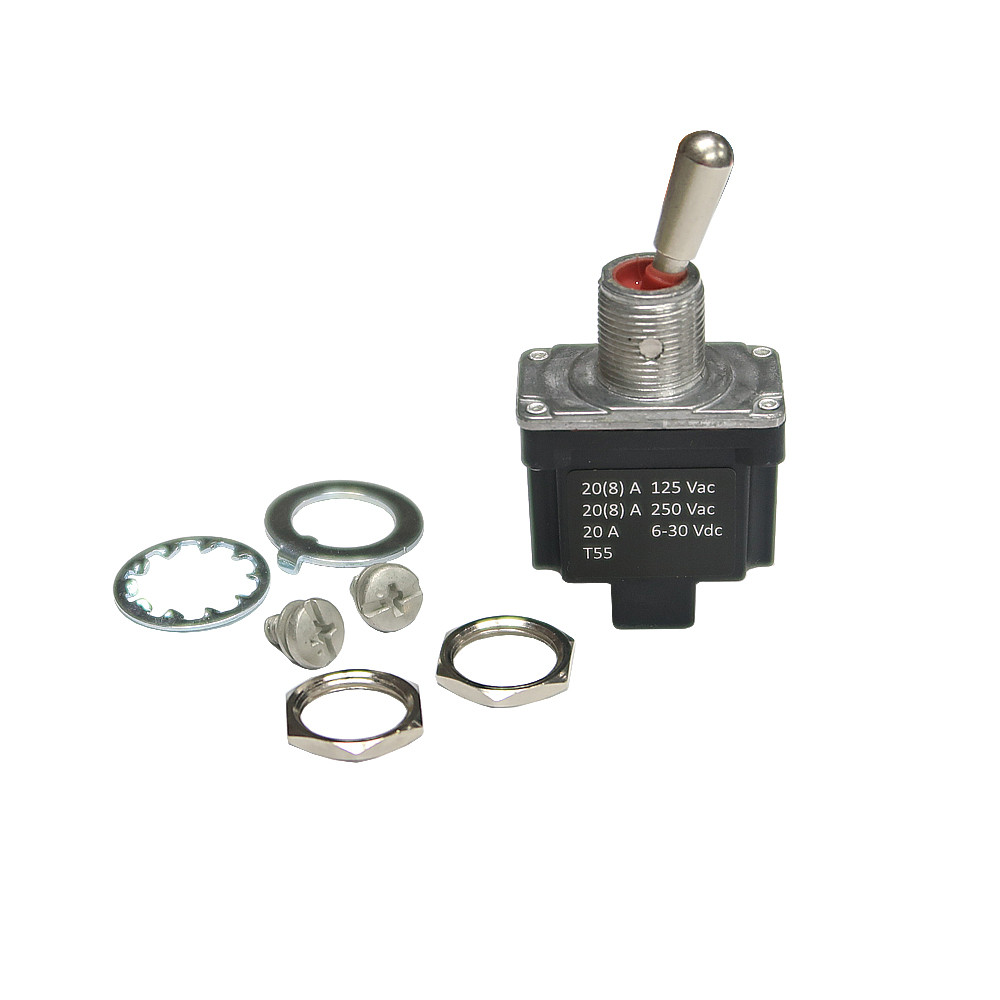

Toggle Switch
Waterproof Toggle Switch IP69K
Part No. E064081-01
Electrical Ratings (UL 61058-1/ENEC15 Recognized):
20 A 6-30VDC T55
20(8) A 125/250 VAC T55
20 A 6-30VDC T125/55 (non-waterproof; for high-temp environment [rated to 125°C])
20(8) A 125/250 VAC T125/55 (non-waterproof; for high-temp environment [rated to 125°C])
Mounting Hole: ϕ12 mm
RoHS compliant
20 A 6-30VDC T55
20(8) A 125/250 VAC T55
20 A 6-30VDC T125/55 (non-waterproof; for high-temp environment [rated to 125°C])
20(8) A 125/250 VAC T125/55 (non-waterproof; for high-temp environment [rated to 125°C])
Mounting Hole: ϕ12 mm
RoHS compliant
Specification
IP rating: IP69K Switch
Toggle Lever: Nickel-plated Brass / Plastic / Locking Levers
Terminal: 6.3x0.8 mm QC Tab / 4.74x0.8 mm QC Tab / Solder / Screw Tab

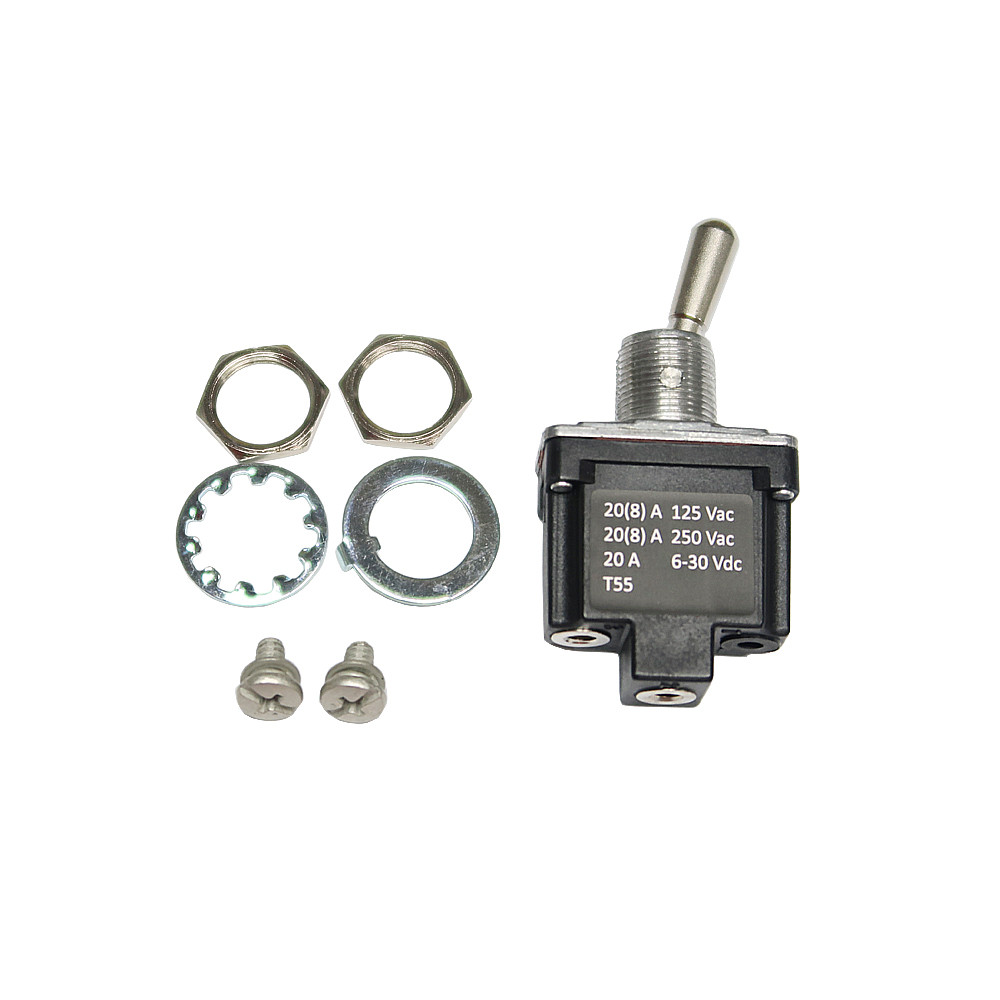

Each switch includes standard accessories:
2x Hex Nuts
1x Internal Tooth Lock Washer
1x Keyway Lock Washer (packaged separately)
6-32 UNC .260” Binding Head Screw with Washer
Toggle Lever: Nickel-plated Brass / Plastic / Locking Levers
Terminal: 6.3x0.8 mm QC Tab / 4.74x0.8 mm QC Tab / Solder / Screw Tab
Each switch includes standard accessories:
2x Hex Nuts
1x Internal Tooth Lock Washer
1x Keyway Lock Washer (packaged separately)
6-32 UNC .260” Binding Head Screw with Washer
