Toggle Switch

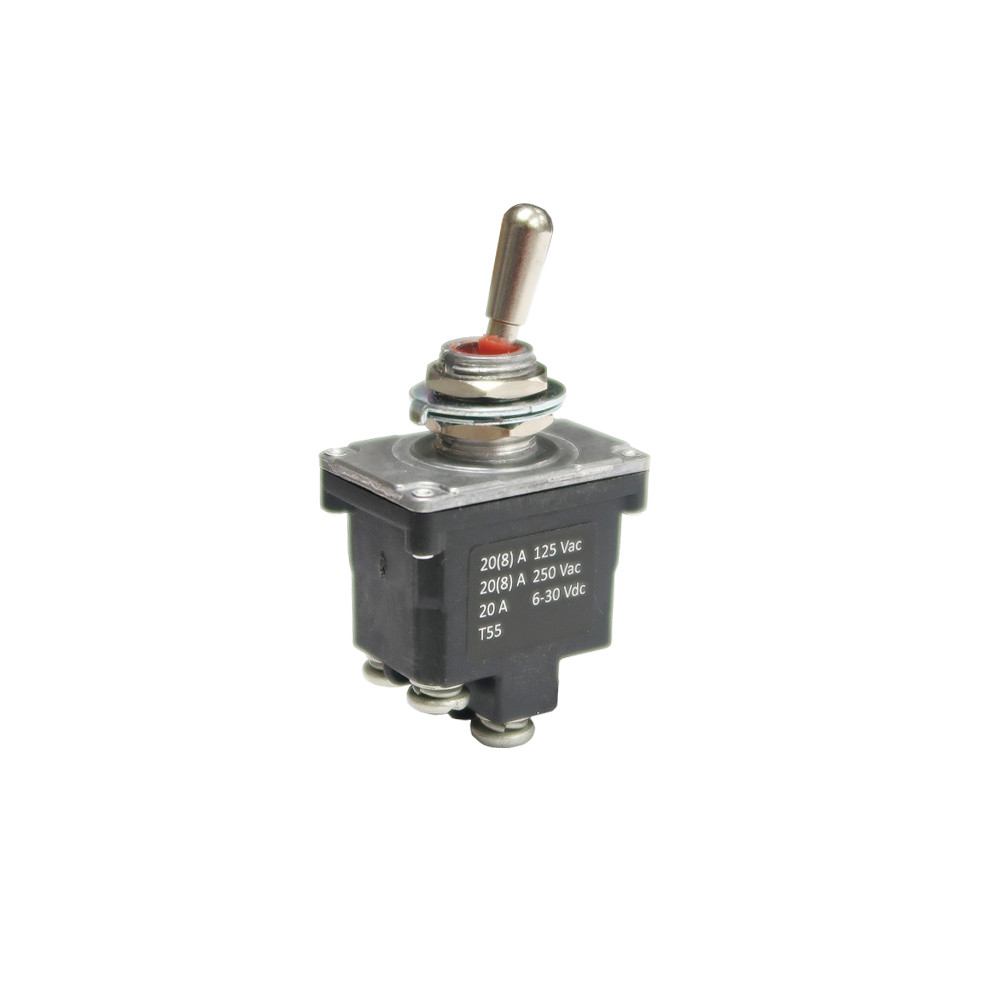

Waterproof Toggle Switch IP69K
Part No. E064083-01
Electrical Ratings (UL 61058-1/ENEC15 Recognized):
20 A 6-30 Vdc T55
20(8) A 125/250 Vac T55
20 A 6-30 Vdc T125/55 (non-waterproof; for the high-temperature environment [rated to 125°C])
20(8) A 125/250 Vac T125/55 (non-waterproof; for the high-temperature environment [rated to 125°C])
Mounting Hole: ϕ12 mm

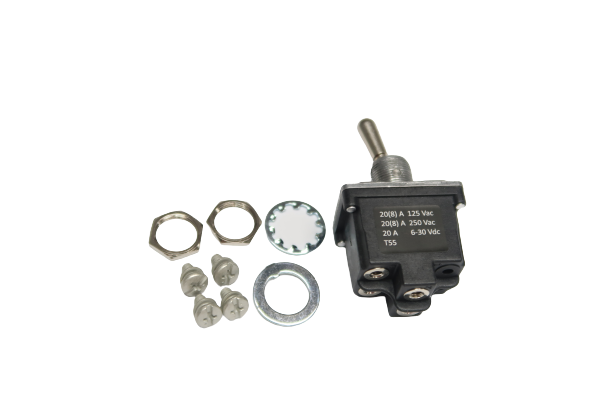

Each switch includes standard accessories: 2x Hex Nuts / 1x Internal Tooth Lock Washer / 1x Keyway Lock Washer (packaged separately) / 6-32 UNC .260” Binding Head Screw with Washer
RoHS compliant
20 A 6-30 Vdc T55
20(8) A 125/250 Vac T55
20 A 6-30 Vdc T125/55 (non-waterproof; for the high-temperature environment [rated to 125°C])
20(8) A 125/250 Vac T125/55 (non-waterproof; for the high-temperature environment [rated to 125°C])
Mounting Hole: ϕ12 mm
Each switch includes standard accessories: 2x Hex Nuts / 1x Internal Tooth Lock Washer / 1x Keyway Lock Washer (packaged separately) / 6-32 UNC .260” Binding Head Screw with Washer
RoHS compliant
Specification
IP rating: IP69K Switch
Toggle Lever: Nickel-plated Brass / Plastic / Locking Levers
Terminal: 6.3x0.8 mm QC Tab / 4.74x0.8 mm QC Tab / Solder / Screw Tab
Waterproof Toggle switch 4P, ON-OFF, DPST
Toggle Lever: Nickel-plated Brass / Plastic / Locking Levers
Terminal: 6.3x0.8 mm QC Tab / 4.74x0.8 mm QC Tab / Solder / Screw Tab
Waterproof Toggle switch 4P, ON-OFF, DPST
