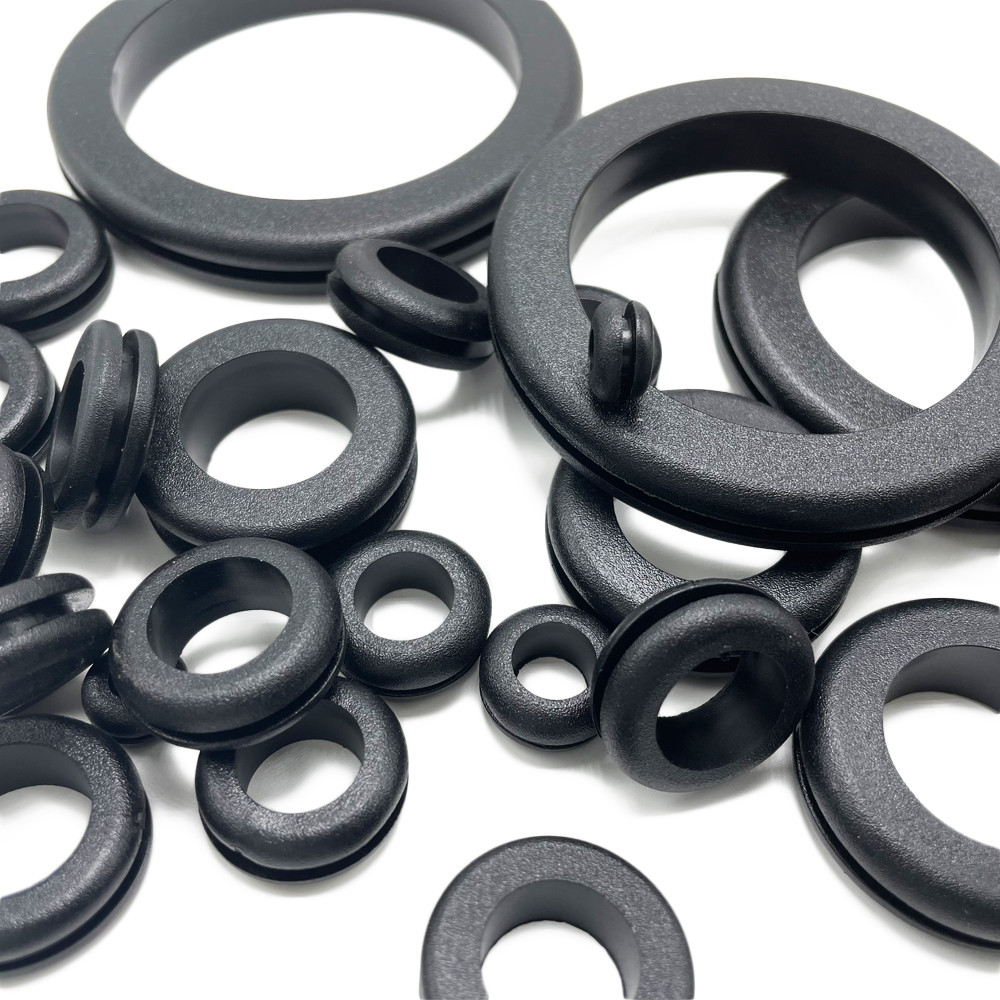

Rubber Grommet
Rubber Grommet
Part No. A520201~A520209
Secure wires and cables when passing through a panel hole.
Keeping them secure while protecting them from abrasions, cuts and snags.
Also protect wires and cables from liquid and dust ingress.
More sizes available upon request
Keeping them secure while protecting them from abrasions, cuts and snags.
Also protect wires and cables from liquid and dust ingress.
More sizes available upon request

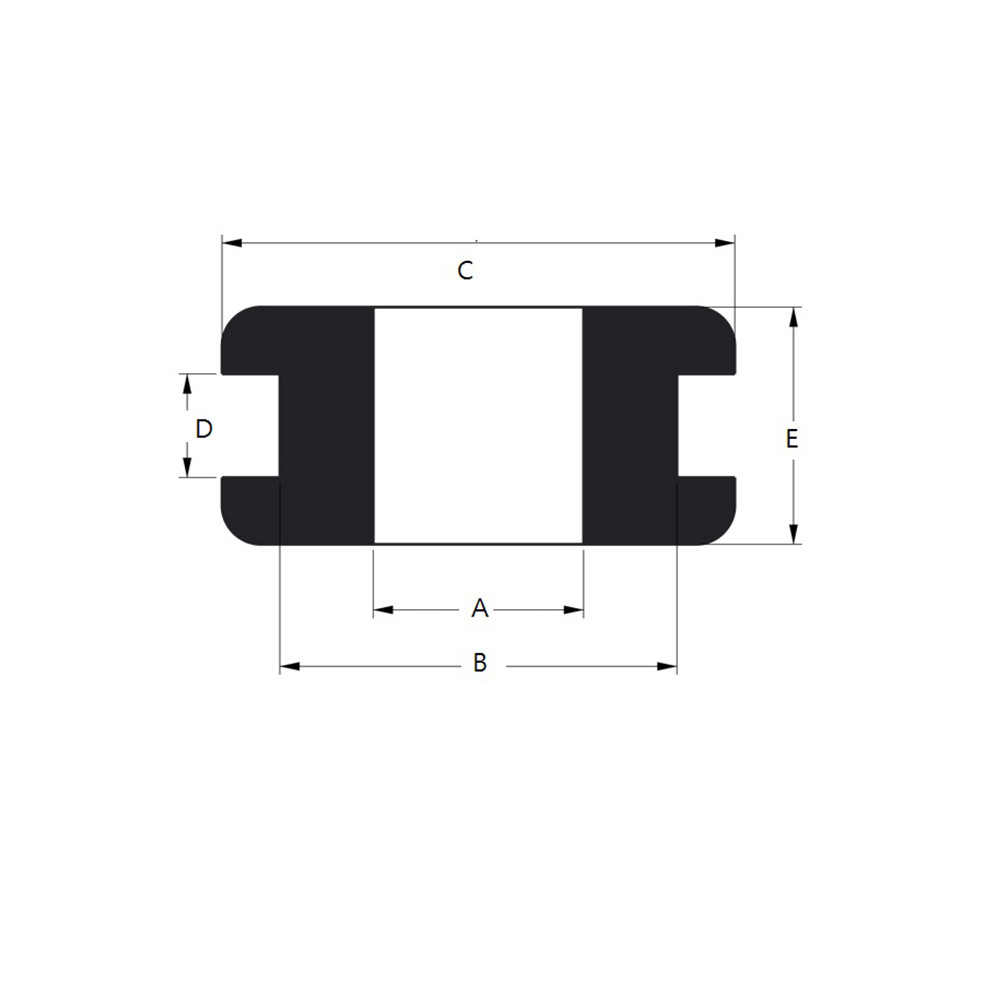

Specification
| Part No. | A | B | C | D | E |
| A520201 | 4 | 7 | 10 | 1.6 | 7 |
| A520202 | 5 | 8 | 12 | 1.6 | 7 |
| A520203 | 6 | 10 | 13.5 | 2 | 7.5 |
| A520204 | 7 | 9 | 15 | 2 | 6.5 |
| A520205 | 8 | 10 | 16 | 2 | 6.6 |
| A520206 | 8 | 12 | 16 | 1.6 | 8.5 |
| A520207 | 9 | 15 | 20 | 2 | 8 |
| A520208 | 10 | 12 | 17 | 2 | 7.2 |
| A520209 | 10 | 14 | 18 | 1.6 | 9 |
| A520210 | 12 | 15 | 22 | 2.5 | 10 |
| A520211 | 14 | 17 | 23 | 2 | 9 |
| A520212 | 16 | 20 | 26 | 2 | 9 |
| A520213 | 16 | 23 | 28 | 1.8 | 8 |
| A520214 | 18 | 22 | 27 | 2.5 | 9 |
| A520215 | 20 | 25 | 30 | 2.5 | 9 |
| A520216 | 22 | 28 | 36 | 3 | 12 |
| A520217 | 23 | 28 | 38 | 6 | 13 |
| A520218 | 25 | 30 | 42 | 3 | 10 |
| A520219 | 30 | 35 | 48 | 3 | 11 |
