WATERPROOF SWITCH

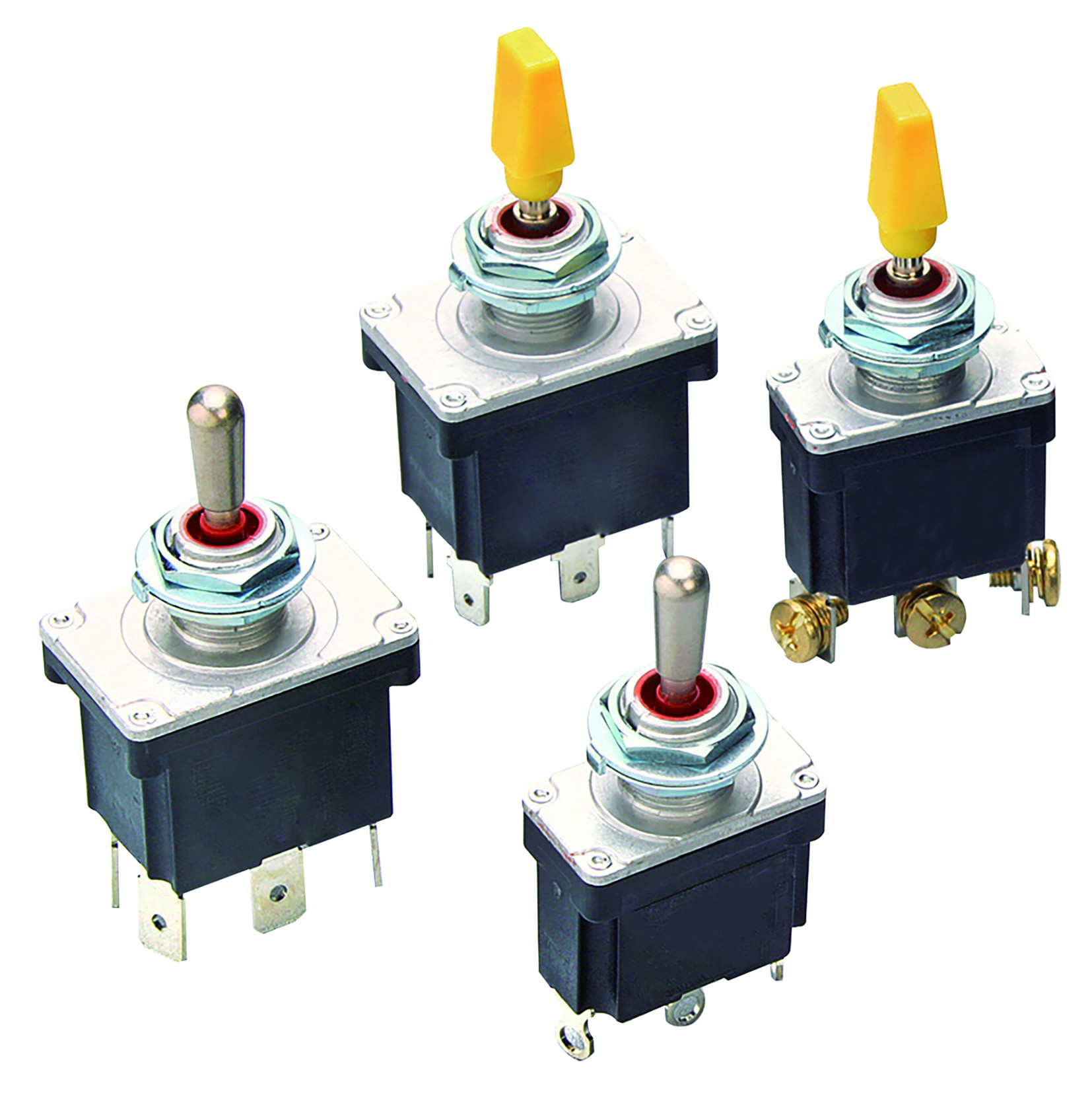

Waterproof Toggle Switch IP69K
Part No. E064026~E064039
E064026-01 2P On-Off
E064027-01 2P (On)-Off
E064028-01 3P On-On
E064029-01 3P (On)-On
E064030-01 3P On-Off-On
E064031-01 3P (On)-Off-On
E064032-01 3P (On)-Off-(On)
E064033-01 4P On-Off, dual pole
E064034-01 4P (On)-Off, dual pole
E064035-01 6P On-On, dual pole
E064036-01 6P (On)-On, dual pole
E064037-01 6P On-Off-On, dual pole
E064038-01 6P (On)-Off-On, dual pole
E064039-01 6P (On)-Off-(On), dual pole
E064027-01 2P (On)-Off
E064028-01 3P On-On
E064029-01 3P (On)-On
E064030-01 3P On-Off-On
E064031-01 3P (On)-Off-On
E064032-01 3P (On)-Off-(On)
E064033-01 4P On-Off, dual pole
E064034-01 4P (On)-Off, dual pole
E064035-01 6P On-On, dual pole
E064036-01 6P (On)-On, dual pole
E064037-01 6P On-Off-On, dual pole
E064038-01 6P (On)-Off-On, dual pole
E064039-01 6P (On)-Off-(On), dual pole
Specification
- Chemical/heat-resistant silicone gasket implanted. Galvanized metal finish.
- RoHS compliant. Mounting Ø12mm
- Top-rated IP level by IEC 60529 C. 13.4 test and ISO 20653 cl 9.4/9.4.3 test.
- Electrical rated up to 20A in both DC and AC. UL 61058-1/ENEC15 Recognized.
- Available toggle lever: Nickel-plated Brass / Plastic / Pull-to-Unlock Levers
- Flat base comes with 4 kinds of terminals: (1) 0.250 Tab (2) 0.187 Tab (3) Solder lug
- Step base comes with binding head screw (6-32 UNC .260 screws)
- RoHS compliant. Mounting Ø12mm
- Top-rated IP level by IEC 60529 C. 13.4 test and ISO 20653 cl 9.4/9.4.3 test.
- Electrical rated up to 20A in both DC and AC. UL 61058-1/ENEC15 Recognized.
- Available toggle lever: Nickel-plated Brass / Plastic / Pull-to-Unlock Levers
- Flat base comes with 4 kinds of terminals: (1) 0.250 Tab (2) 0.187 Tab (3) Solder lug
- Step base comes with binding head screw (6-32 UNC .260 screws)
